Vehicle-Mounted Boiler Specifications and Sizing Guide

How to translate a field duty into a practical vehicle-mounted boiler specification without oversizing the package or omitting critical interfaces.

Published 2026-08-04 · By Vance Petroleum

Keep heating duty, vehicle integration and site supply distinct

Confirm the actual steam or hot-water assignment and any separately proposed process-heating arrangement. A vehicle-mounted boiler is not assumed to change heating medium or supply every treatment service without a configuration-specific response. Useful outlet performance, the installed equipment and the carrier arrangement each need an accepted basis.

Identify the travel and working conditions, onboard tanks, power and connection equipment included in the order. External water conditioning, replenishment, distribution and receiving-system work remain separate unless explicitly supplied. Retain supplier responsibilities and verification evidence together; automatic controls, a reference photograph or nominal tank capacity do not establish universal autonomy, destination acceptance or unattended site operation.

Start with the operating duty, not a model number

A useful specification begins with the job the equipment must complete. For a vehicle-mounted boiler, that duty is integrating a selected steam or hot-water heating package with its carrier and accepted site interfaces. State the normal operating point, the maximum credible point and the duration at each condition. A single maximum figure is not enough: the supplier also needs the expected operating range to select pumps, drivers, heat exchangers, vessels, controls and protective devices that work efficiently away from the peak.

Record the fluid, gas or process-medium properties at minimum, normal and maximum conditions. Include temperature, density, viscosity, solids, corrosive species and any hazardous-area classification. These details influence metallurgy, seals, instruments and the cleaning method, and they frequently explain why two apparently similar quotations have different prices.

Five parameters to define before requesting a quote

ItemWhy it mattersInformation to provide
Useful thermal dutyIdentify the selected medium and acceptance boundaryInlet, outlet, rate and working duration
Operating conditionsMatch the heating equipment to the actual serviceAccepted pressure, temperature and fluid basis
Installed utility scopeIdentify onboard resources and external servicesWater, fuel, power and replenishment schedule
Vehicle arrangementAssess the actual equipment and tank contentsAccepted load, layout and carrier information
Access and preparationSupport the intended working and relocation patternSupplier documents and site responsibilities

Ask the supplier to show the duty point on a curve, heat balance or capacity calculation where applicable. Ratings should identify whether they are continuous, intermittent or short-duration. The proposal should also state derating for altitude, high ambient temperature, cold starts and the intended fuel or power source.

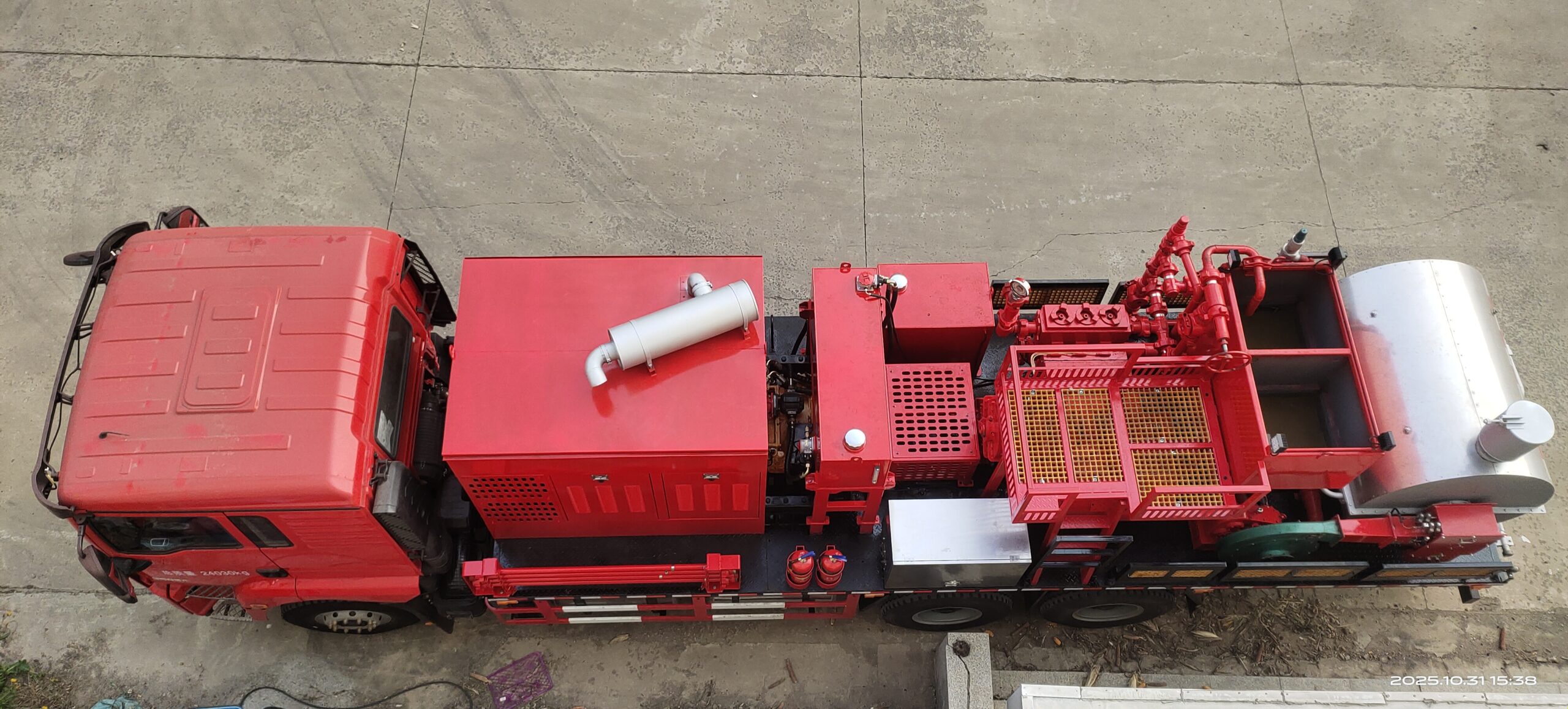

Vehicle-mounted boiler whole-vehicle reference; verify the selected heating and carrier configuration
Vehicle-mounted boiler reference view. Confirm the installed equipment, selected medium and carrier arrangement in the offer.

Match the main components to the duty

01

duty-selected boiler or heater module

Confirm material, rating, control method, inspection access and the evidence used to verify its capacity.

02

specified water or fluid supply arrangement

Confirm material, rating, control method, inspection access and the evidence used to verify its capacity.

03

selected burner and accepted fuel supply

Confirm material, rating, control method, inspection access and the evidence used to verify its capacity.

04

configuration-specific power and carrier interfaces

Confirm material, rating, control method, inspection access and the evidence used to verify its capacity.

Auxiliary systems deserve the same attention as the headline component. Cooling, lubrication, filtration, drains, relief paths, earthing, fire protection and operator access often determine field reliability. Define connection sizes and interface responsibilities in the purchase specification so that hoses, power, fuel, water and data connections are ready when the unit reaches site.

Engineering data checklist for an accurate proposal

  • Job objective and expected operating sequence
  • Minimum, normal and maximum duty points with units
  • Process-medium composition and temperature range
  • Site altitude, climate, hazardous-area classification and road limits
  • Preferred chassis, mounting method, power source and fuel
  • Applicable codes, inspection, certification and documentation
  • Required spare parts, training, commissioning and acceptance tests

A technically comparable RFQ asks every bidder to respond to the same data sheet and deviation list. Mark unknown values honestly rather than inventing them; a qualified manufacturer can then identify which field data must be confirmed during engineering.

Vehicle-Mounted Boiler project-specific engineering focus

Site preparation is part of equipment selection because utility quality and connection limits can change the practical capacity. For sizing work, define useful thermal output, selected medium, required conditions and duration together. Assess the actual heating equipment and auxiliaries against those cases. Review the installed vehicle, accepted contents and mass distribution with the responsible integrator. Keep preparation, operator access and external utility responsibilities in the same purchase baseline; no one rating establishes the whole package.

Use the four intended duties as separate review cases: mobile steam cleaning, oilfield heating, pipeline maintenance and temporary industrial steam supply. For each case, record the starting condition, target output, operating duration, expected variation and shutdown condition. This exposes whether a shared configuration is genuinely suitable or whether a different control range, material, auxiliary system or connection set is needed.

A

duty-selected boiler or heater module with specified water or fluid supply arrangement

Review their operating envelopes together. Capacity on one side is not useful if the connected subsystem cannot supply, transmit or control the same duty.

B

selected burner and accepted fuel supply with configuration-specific power and carrier interfaces

Define monitoring, protection, calibration and maintenance access as part of the package acceptance criteria rather than optional details.

The RFQ should therefore carry a project data sheet, interface drawing and deviation schedule. That combination gives the manufacturer enough information to explain the design and gives the buyer a consistent basis for technical evaluation, factory testing and later commissioning.

External technical reference
For broader industry context, consult ASME Boiler and Pressure Vessel Code resources. Project requirements and applicable codes must still be confirmed for the destination country and end user.

Frequently asked questions

Which vehicle-mounted boiler specification should be defined first?

Start with the operating duty and minimum, normal and maximum conditions. The equipment rating follows the required pressure, flow, temperature, capacity and operating duration.

Can a standard model be selected before field data are complete?

A preliminary model can be discussed, but final selection should wait until process conditions, site interfaces, codes and climate are confirmed.
