High-Efficiency Steam Generation • Rapid Deployment • Rugged Off-Road Chassis • Designed for Fracturing, Well Cleaning & EOR
The vehicle-mounted boiler from Vance Petro is a fully self-contained, truck-mounted steam generation system engineered to deliver reliable, high-capacity steam at even the most remote and challenging oilfield locations. Unlike traditional stationary boiler installations that require permanent foundations, extensive civil works, and weeks of setup, our truck-mounted boiler is ready to deploy within hours — driving directly to the wellsite, powering up, and producing industrial-grade steam on demand.
Every Vance Petro oilfield mobile boiler unit integrates the burner assembly, fire-tube or water-tube heat exchanger, fuel tanks, water tanks, feed-water treatment system, automated controls, and safety instrumentation onto a single heavy-duty off-road chassis. This all-in-one architecture eliminates the logistical complexity of transporting separate skid-mounted components, reduces setup time to a fraction of what conventional systems require, and ensures that every critical subsystem is factory-tested as a unified package before it leaves the production line.
Whether your operation demands fracturing fluid heating for hydraulic stimulation, high-pressure steam injection for enhanced oil recovery (EOR), wellbore cleaning and circulation, pipeline de-waxing, or temporary steam supply for camp facilities and process plants, the Vance Petro steam boiler truck is purpose-built to meet — and exceed — those requirements.
Precision-engineered fire-tube or water-tube heat exchanger delivering thermal efficiencies exceeding 92% with advanced corrugated furnace tubes and optimized combustion geometry.
Integrated fuel (3,000–8,000 L) and water tanks (5,000–15,000 L) with automated level sensors, variable-frequency pumps, and on-board water treatment for extended autonomous operation.
PLC-based control with intuitive HMI touchscreen for real-time regulation of steam pressure, temperature, and flow rate with automatic modulation of burner and feedwater systems.
Cold-start to rated output in 15–20 minutes with configurable capacities from 4 t/h to 20 t/h and working pressures up to 4.0 MPa (580 psi).
Reinforced 6×6 or 8×8 all-wheel-drive chassis with heavy-duty suspension and high-torque drivetrain for reliable mobility across unpaved roads, desert terrain, and harsh winter conditions.
Fully enclosed, HVAC-controlled cabin with high-resolution HMI touchscreen displaying real-time boiler parameters and optional remote monitoring via 4G/satellite.
API, ASME, ISO 9001:2015, CE certified with integrated high/low water cutoffs, over-pressure relief, flame failure detection, ESD, and low-NOx burner technology.
Modular architecture allows individual component access and replacement. Extensive customization options including fuel type, winterization, and control system integration.
| Parameter | Specification |
|---|---|
| Steam Output Capacity | 4 t/h – 20 t/h (configurable) |
| Rated Working Pressure | 1.0 – 4.0 MPa (145 – 580 psi) |
| Thermal Efficiency | ≥ 92% |
| Boiler Type | Fire-tube (standard) / Water-tube (optional) |
| Fuel Type | Diesel, Natural Gas, LPG, Dual-Fuel |
| Chassis Configuration | 6×6 AWD (standard) / 8×8 AWD (heavy-duty) |
| Control System | Siemens / Allen-Bradley PLC with 10" HMI touchscreen |
| Operating Temperature Range | -40°C to +55°C with winterization package |
| Certifications | API, ASME, ISO 9001:2015, CE, China Class-A Boiler License |
| Design Life | ≥ 20 years (boiler pressure vessel) |
Provides rapid, high-volume steam or hot water to fracturing fluid blending systems, ensuring optimal gel hydration and treatment efficiency in cold-weather operations.
Delivers high-temperature steam for effective removal of paraffin, asphaltene, and hydrate deposits from tubing, casing, and surface flow lines.
Delivers consistent high-pressure steam for cyclic steam stimulation (CSS), steam flooding, and SAGD operations in heavy oil reservoirs.
Provides on-demand thermal energy for pipeline heating stations, heat exchangers, and jacketed vessels to prevent wax deposition and hydrate plugging.
Ideal temporary steam source for remote camps, early production facilities, and construction sites with no permanent boiler infrastructure required.
Critical backup for unplanned shutdowns of permanent boiler systems, ensuring minimal production interruption during emergencies.

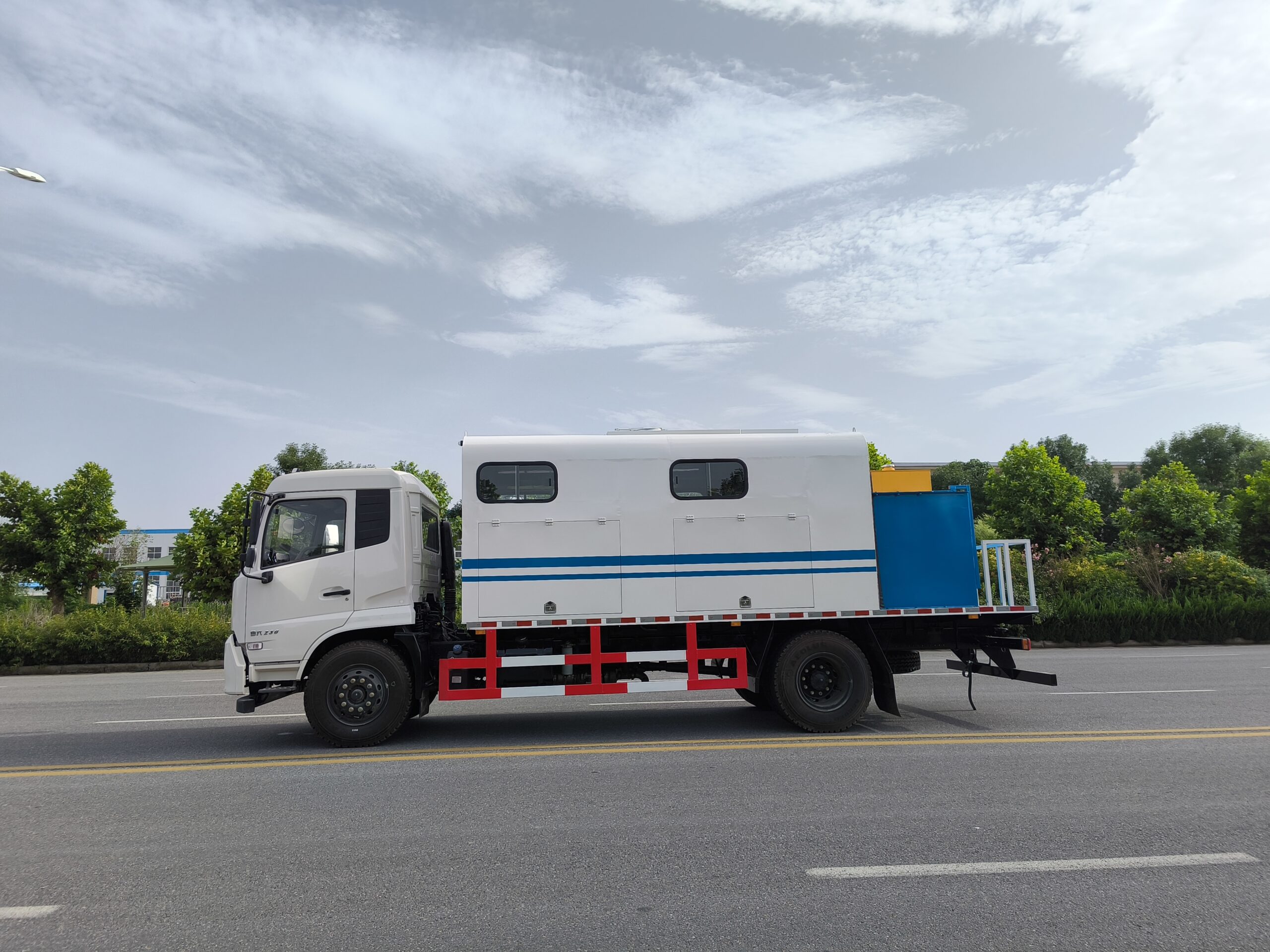

Right Side View
Left Side View
Front View
Rear View
Right Front Angle
Right Rear Angle
Left Front Angle

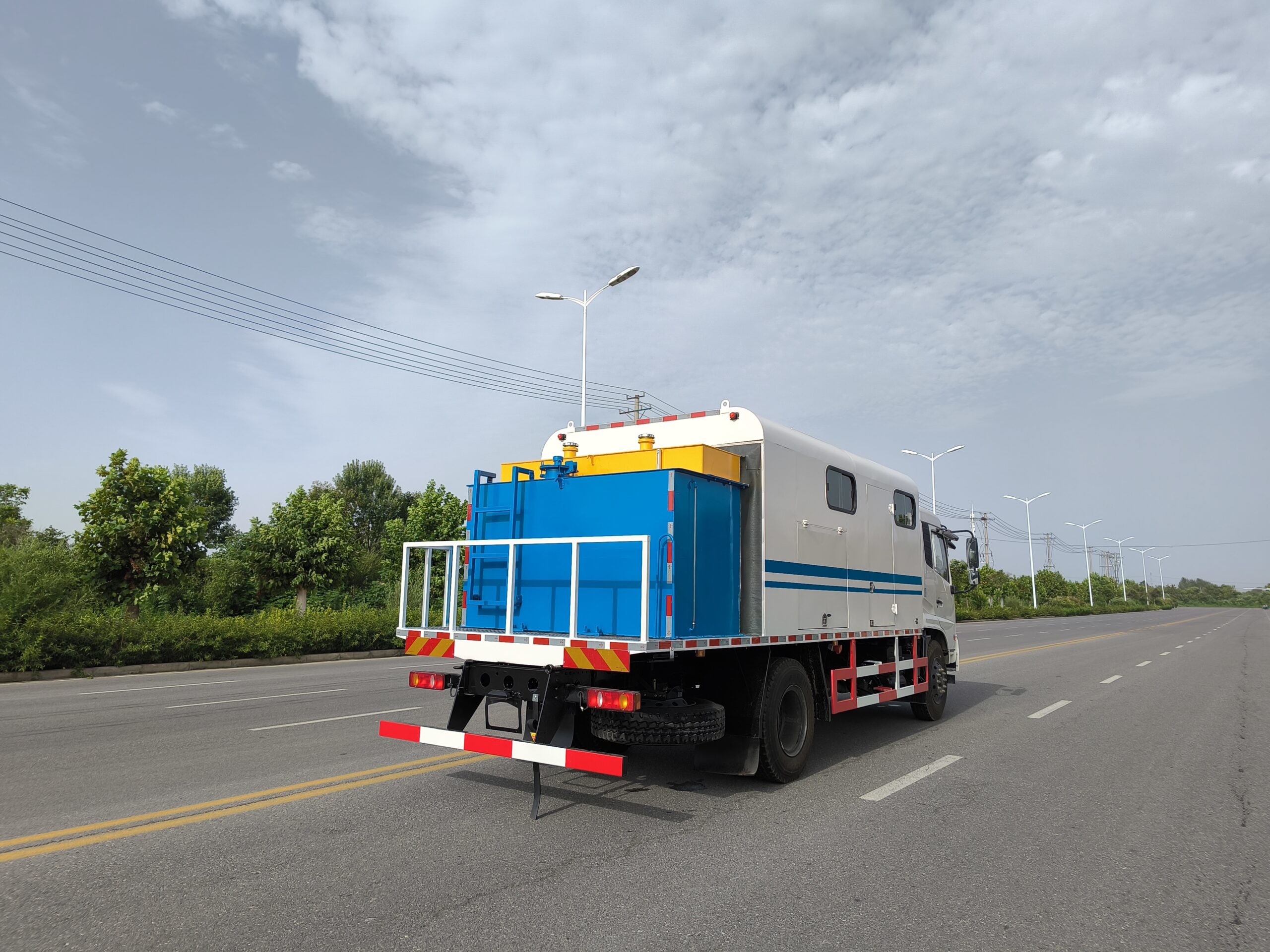

Left Rear Angle
Burner Assembly Detail
Digital Control Panel
Drive to location and produce steam within hours — no foundation, no construction, no long setup time.
30–50% cost savings vs. permanent installations with redeployable asset across multiple projects.
Engineered for -40°C to +55°C with comprehensive winterization and industrial-grade components.
Capacity, pressure, fuel type, chassis, control system, and winterization fully engineered to your needs.
24/7 technical support, training, spare parts, and field service engineers worldwide.
Henan Vance Petroleum Machinery Co., Ltd. is a specialized manufacturer of oilfield equipment headquartered in Puyang City, Henan Province, China. With decades of experience in designing and manufacturing equipment for upstream oil and gas operations, Vance Petro has established a reputation for engineering excellence, product reliability, and responsive customer service. Our product portfolio spans vehicle-mounted boilers, truck-mounted fracturing units, cementing equipment, coiled tubing units, nitrogen pumping systems, and a wide range of wellhead and downhole tools.
Contact our engineering team today for a detailed technical proposal and competitive quotation tailored to your specifications.
